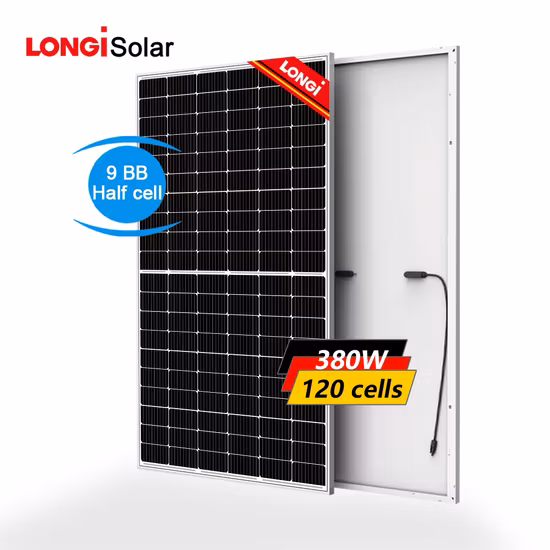

Longi Perc Mono Solar Panel 400W 500W 600W 700W Manufacture PV Panel Half Cut

Basic Info

Model NO.	RS410M-120HC
After-sales Service	Yes
Warranty	25 Years
Number of Cells	120cells
Application	Industrial
Condition	New
Certification	EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Material	Monocrystalline Silicon
Weight	21kg
Solar Cell	9bb Mono 166X166mm Perc
Glass	3.2mm Tempered Low Iron
Junction Box	IP68 Rated
Connector	Mc4(Compatible)
Cable	PV Cable 4mm^2, Vertical/Horizontal
Cell Orientation	120cells
Tpt Backsheet	White/Black Backsheet
Frame	Silver/Black Anodized Aluminium Alloy
OEM/ODM	Acceptable
Transport Package	2PCS/Carton, 30PCS/Pallet
Specification	1776*1052*35mm
Trademark	Rosen Solar/OEM/ODM
Origin	China
HS Code	8541402000
Production Capacity	15000PCS/Week

Packaging & Delivery

Package size per unit product 20.00cm * 10.00cm * 5.00cm Gross weight per unit product 23.000kg

Product Description

Technical Specification Data(STC) of Solar Panel

Model of Solar Panel	RS360M-120	RS365M-120	RS370M-120	RS375M-120	RS380M-120
Peak Power Watts-Pmax(Wp)*	360	365	370	375	380
Maximum Power Voltage-Vmpp(V)	33.9	34.1	34.3	34.5	34.7
Maximum Power Current-Impp(A)	10.62	10.71	10.79	10.88	10.96
Open Circuit Voltage-Voc(V)	40.5	40.7	40.9	41.1	41.3
Short Circuit Current-Isc(A)	11.35	11.42	11.49	11.56	11.63
Module Efficiency (%)	19.3	19.5	19.8	20.1	20.3
Power Output Tolerance-Pmax(W)	0~+5
Temperature Coefficient of Pmax	-0.37%/ºC
Temperature Coefficient of Voc	-0.30%/ºC
Temperature Coefficient of Isc	0.06%/ºC
STC	Irradiance 1000W/m2, Cell Temperature 25, Air Mass AM1.5

Detailed Images of Solar Panel



Packing & Delivery



Solar Panel Packing Details : 30pcs per pallets or in wooden boxDelivery Details : 5-7days

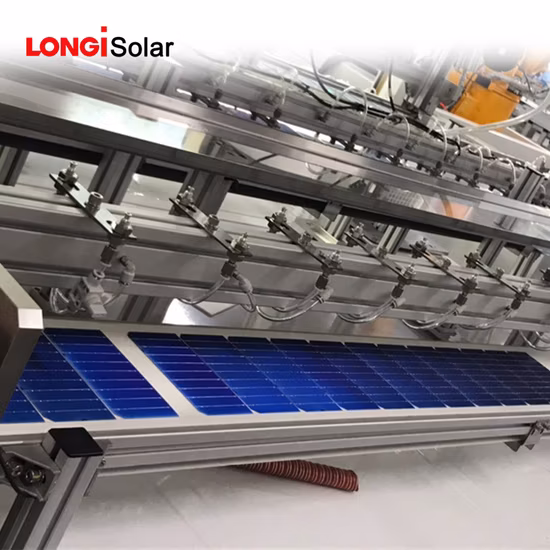

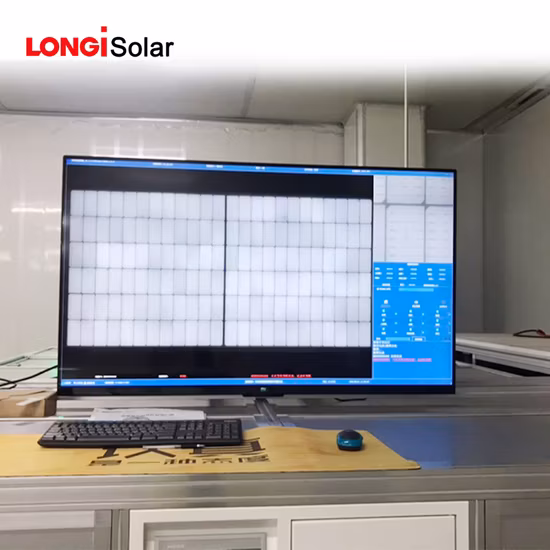

Factory of Rosen Solar

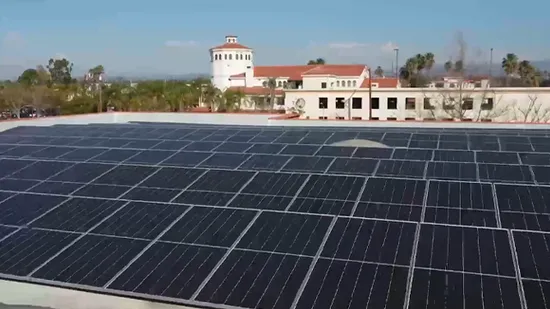

Projects of Rosen Solar
